2026 Captain’s Edition
Marine Diesel Baseline & Trend Log PDF
Reference, Baseline & Deviation Record
- 26 Pages / 142 Register Lines A4 and US Letter included.
- 906 Live Fields Interactive and 100% offline.
- 6 Calculation Models M1 through M6.
- Instant Digital Access Download links the moment you pay.
Every published table of “normal” engine readings was written for somebody else's engine.
Oil pressure alarm points, coolant limits, exhaust gas temperatures and wear limits differ between manufacturers, between models from the same manufacturer, and between two installations of the same engine. A figure that is right for a Yanmar 4JH is wrong for a Volvo D2, and both are wrong for whatever is in your engine bay unless somebody checked.
So this log is built the other way round. You transcribe your own engine's figures from your own manual, once, onto a reference page. You record one full set of readings while the engine is in a state you are willing to call good. Every entry after that measures itself against both.
What you receive

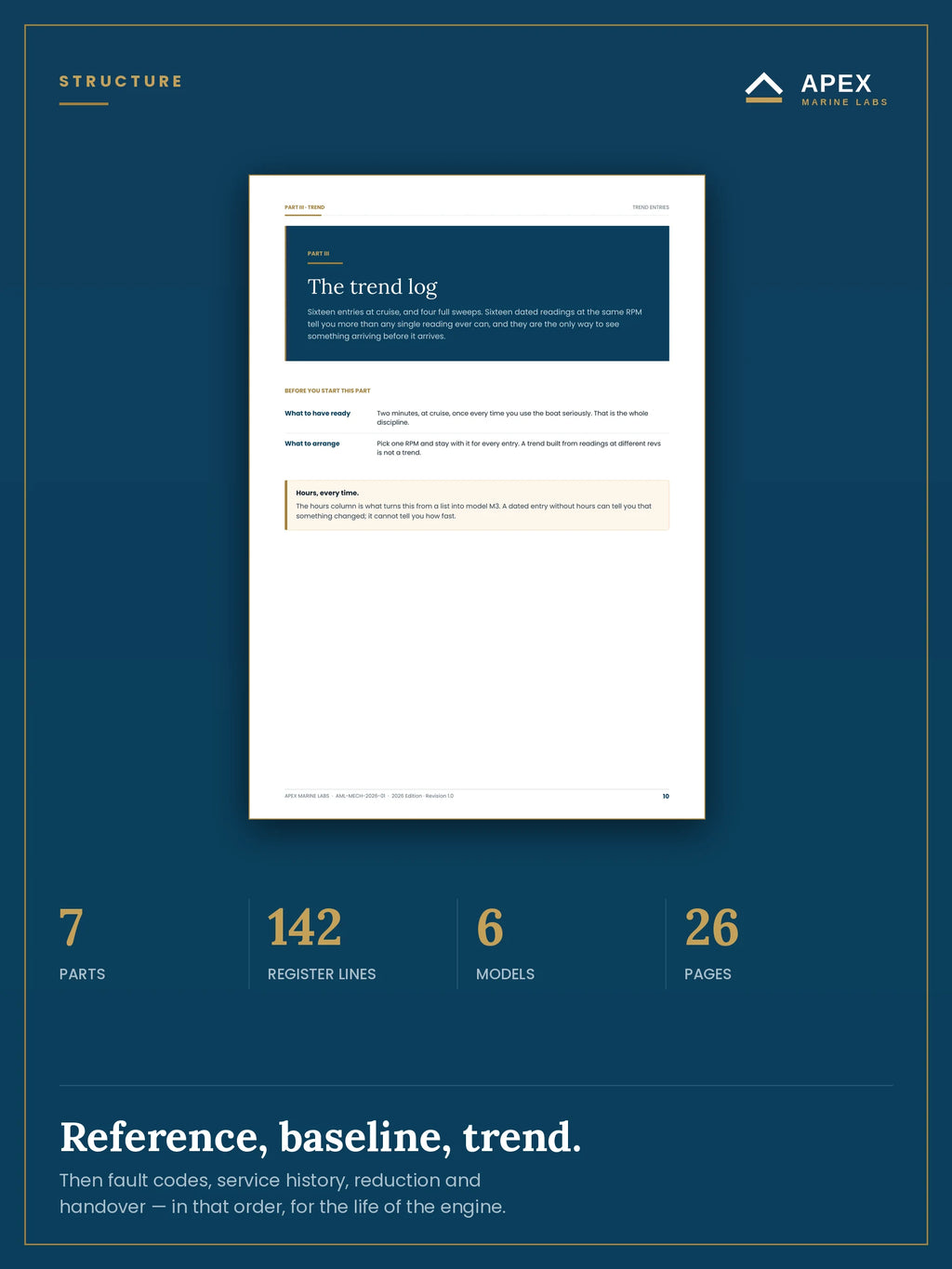

A seven-part record for the life of the engine

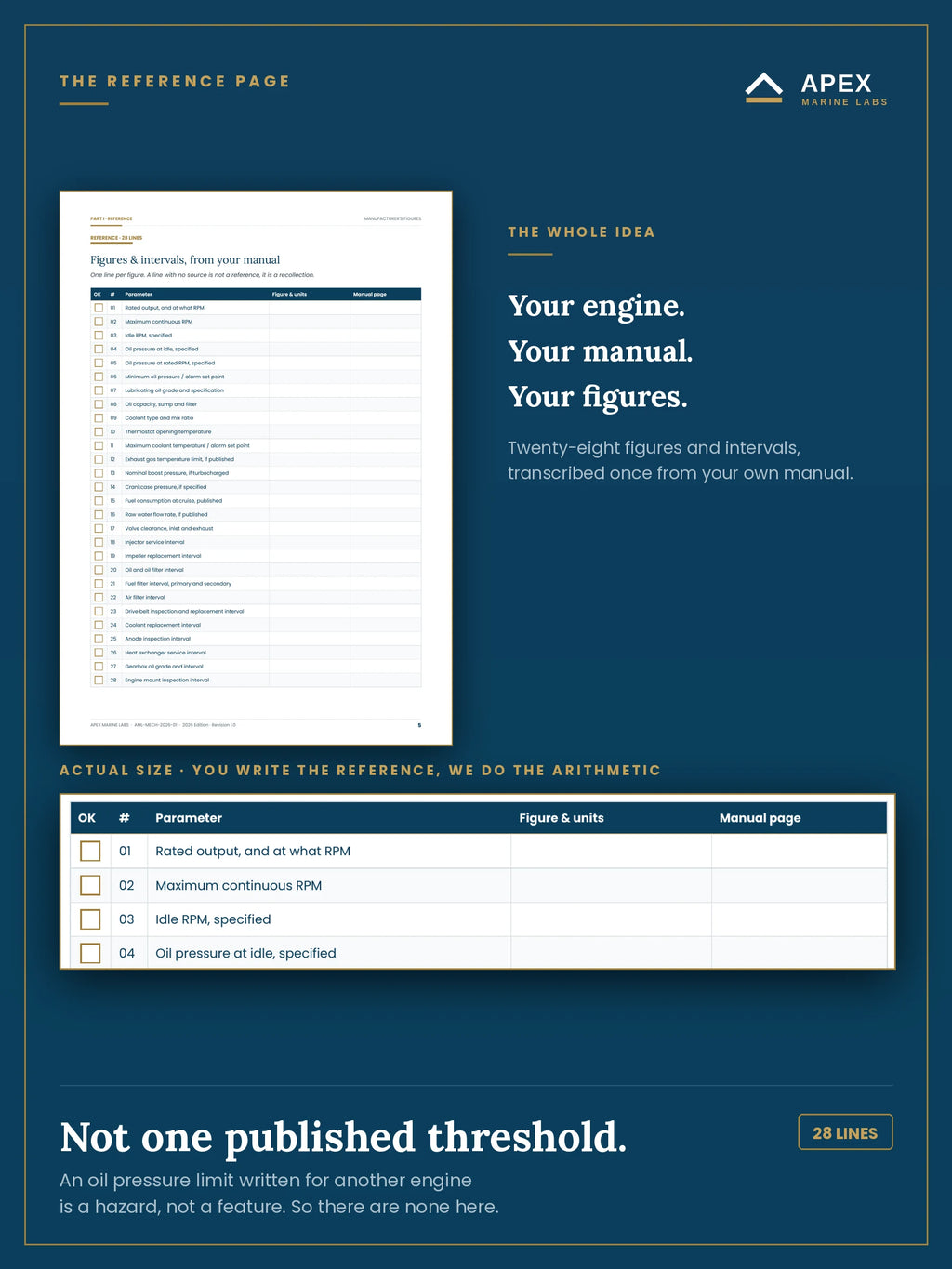

- A 28-line reference page for the figures and intervals you transcribe, with the manual page recorded beside each
- An 8-line alarm register comparing the manual's set points against what is actually fitted to your panel
- A commissioning baseline over six RPM steps, with the conditions that make it comparable

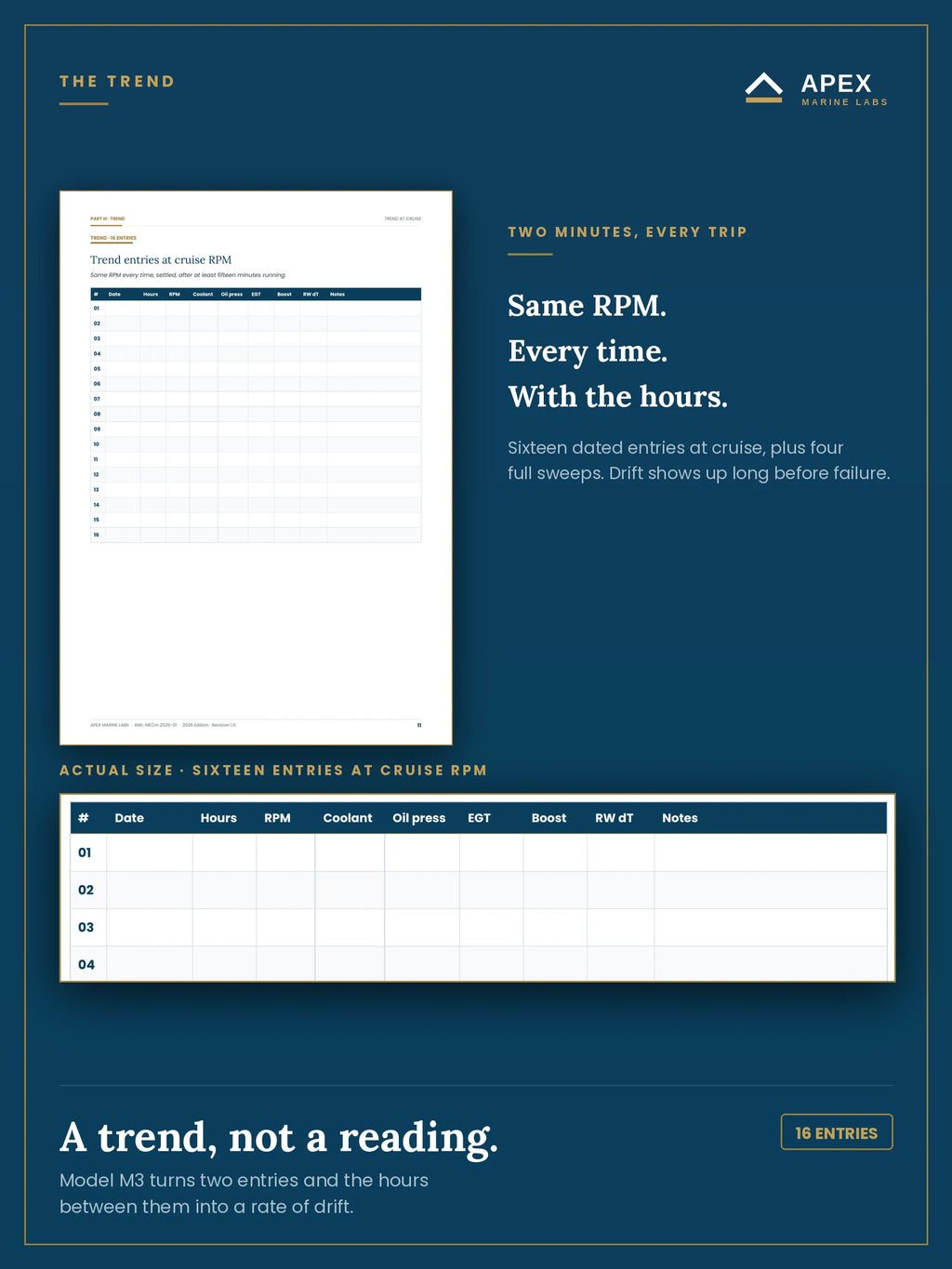

- 16 trend entries plus 4 full sweeps — two minutes at cruise, every time you use the boat
- Fault code and event registers, including the codes that cleared themselves

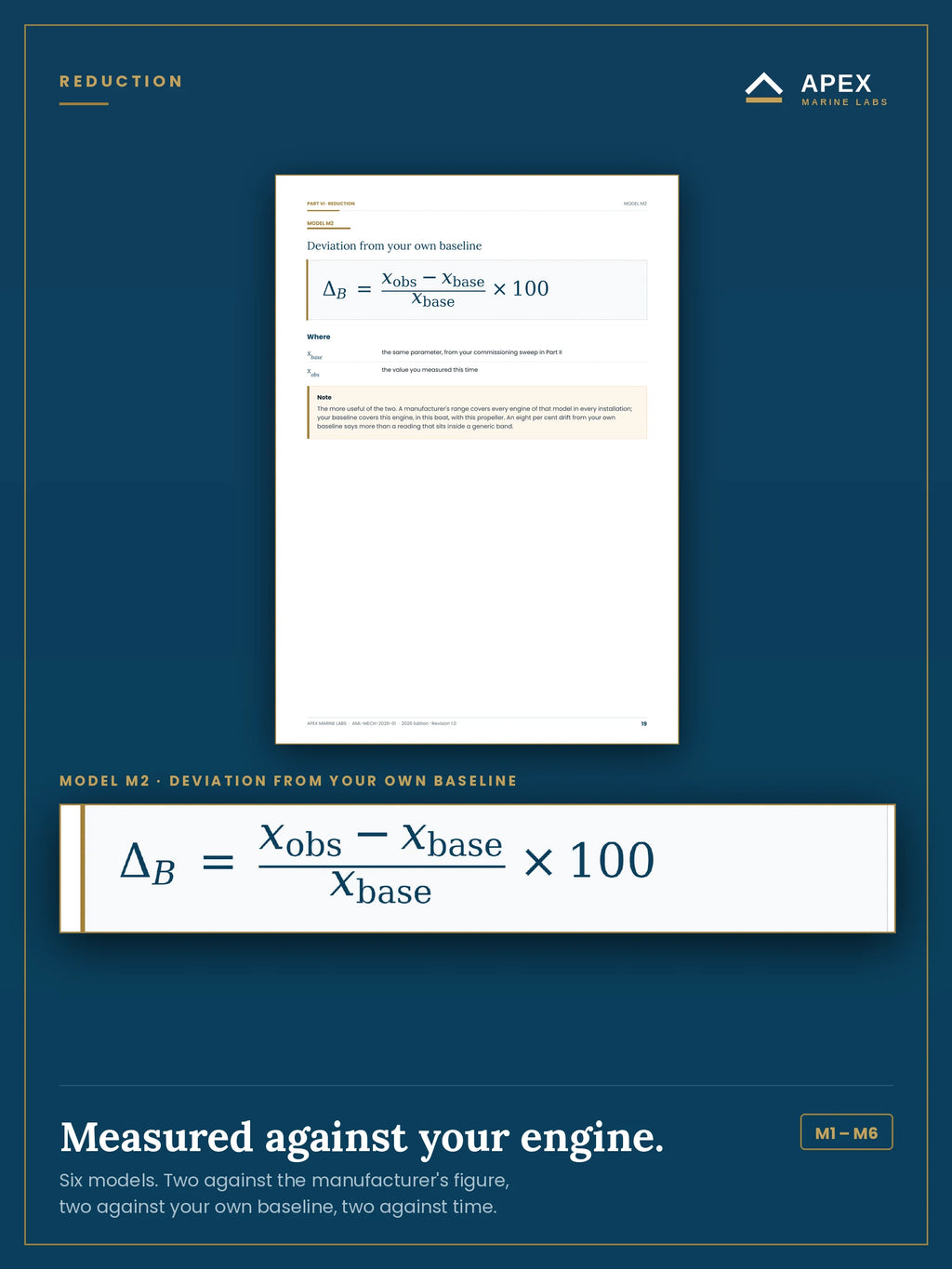

- 6 calculation models for deviation, drift rate, heat exchanger differential and interval consumed
A reading is a moment. A trend is a warning.
A coolant temperature that sits inside a generic band tells you very little. The same temperature, eight per cent above where your own engine ran at the same revs two hundred hours ago, tells you something is happening.
That is why the hours column is not optional and why the RPM must be the same every time. Model M3 turns two entries and the hours between them into a rate of drift — which is the difference between a logbook and a prediction.
Not one published threshold. Deliberately.
You will not find a normal range, a wear limit or a service interval of our own anywhere in this document. An owner who reads “low oil pressure below 2.0 bar” in a general guide, on an engine whose maker alarms at 2.8, keeps running an engine that should be stopped. An owner who reads “over 95 °C is critical”, on an engine that runs normally at 92, shuts down his propulsion mid-passage. Both errors come from a number written for a different engine. This log removes the number and keeps the arithmetic.
What it is worth to a buyer, a surveyor and an insurer
An engine with a completed log of this kind is a different proposition from an engine with a shoebox of receipts. It shows the intervals were kept against the manufacturer's own figures, it shows what drifted and when, and it shows which faults appeared and how they were resolved.
Who it is for
- Owners who have just bought and want a baseline before anything drifts
- Owners who inherited an engine with no history and need to start one
- Anyone planning a passage where the engine matters more than usual
- Owners preparing to sell, who want the engine to speak for itself
Technical specification
| Product ID | AML-MECH-2026-01 |
| Extent | 26 pages · 7 parts · 6 calculation models |
| Register lines | 142 across reference, baseline, trend, events and service |
| Interactivity | 906 live PDF form fields — 64 tick boxes and 842 entry fields |
| Formats included | A4 and US Letter, both fillable and print-ready |
| Engines | Any marine diesel — the document carries no engine-specific data |
| Units | Unit-neutral — you set them and record which you used |
| Offline | No app, no account, no connection required once downloaded |
What it is not
This document records, structures and compares figures that you supply. It publishes no threshold, no normal range and no limit, and it reaches no conclusion about any engine or installation. It is not a service manual and not engineering advice. It is not prepared by a qualified marine engineer and does not substitute for one.
Where a reading matters, the decision belongs to a qualified engineer working from the manufacturer's documentation for your serial number. Nothing here instructs you to run, load, dismantle or adjust an engine.
Instant download. Your links appear on screen the moment payment clears, and arrive by email within a minute. They do not expire.
2026 Captain's Edition · Revision 1.0 · AML-MECH-2026-01. Apex Marine Labs designs the organisational process behind good seamanship. Our documents record and organise; they do not replace a certified marine survey, a service manual, or a qualified marine engineer.
